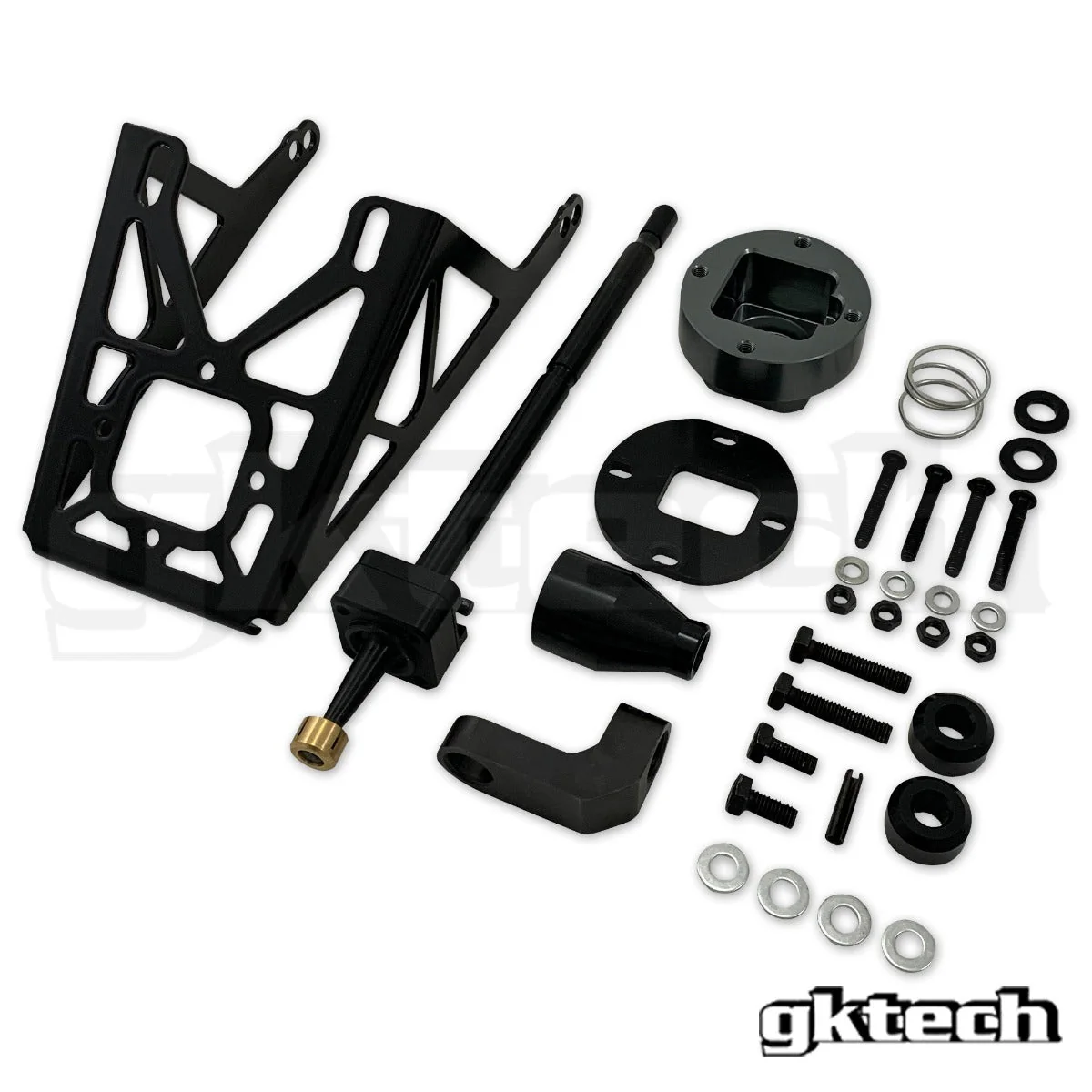

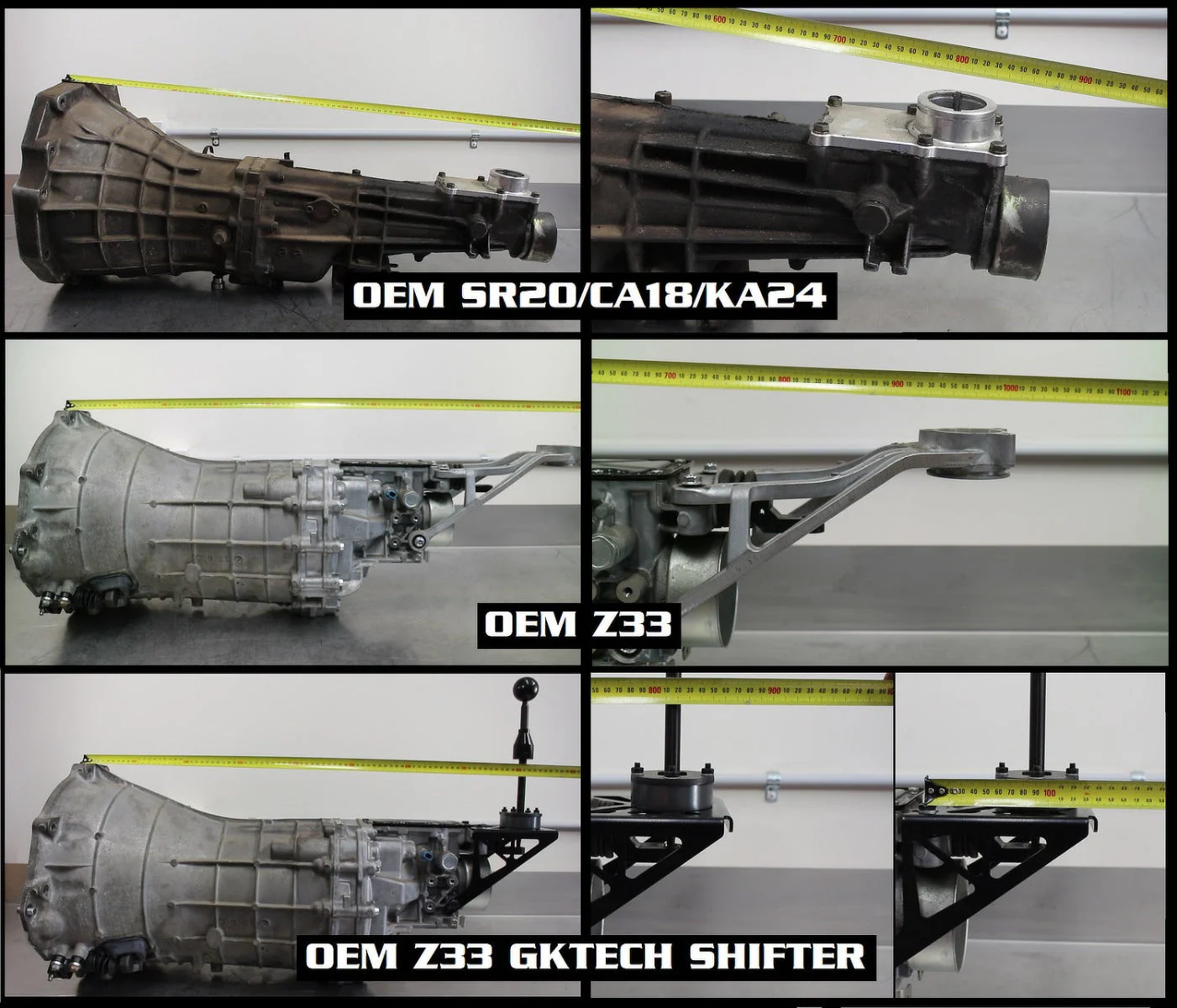

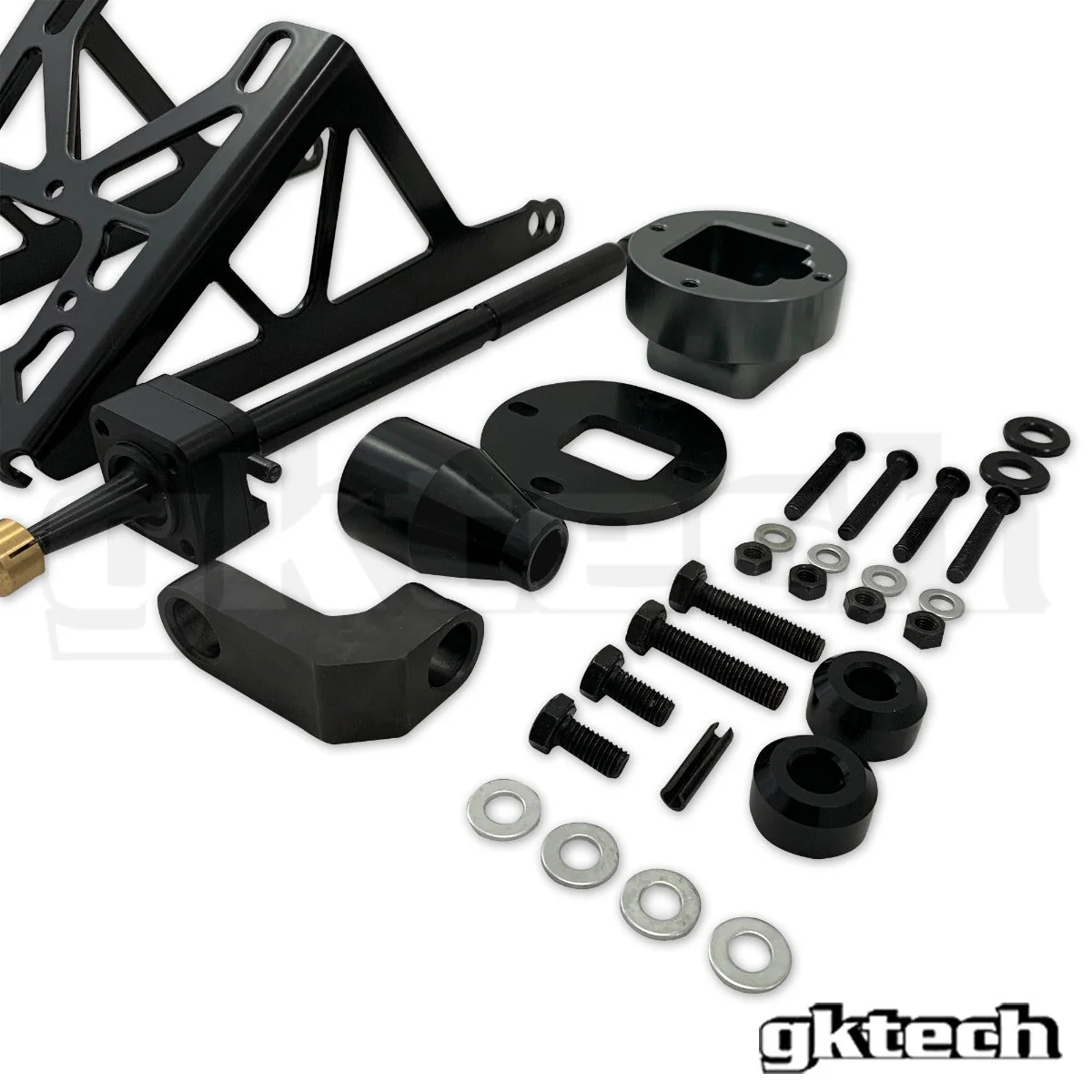

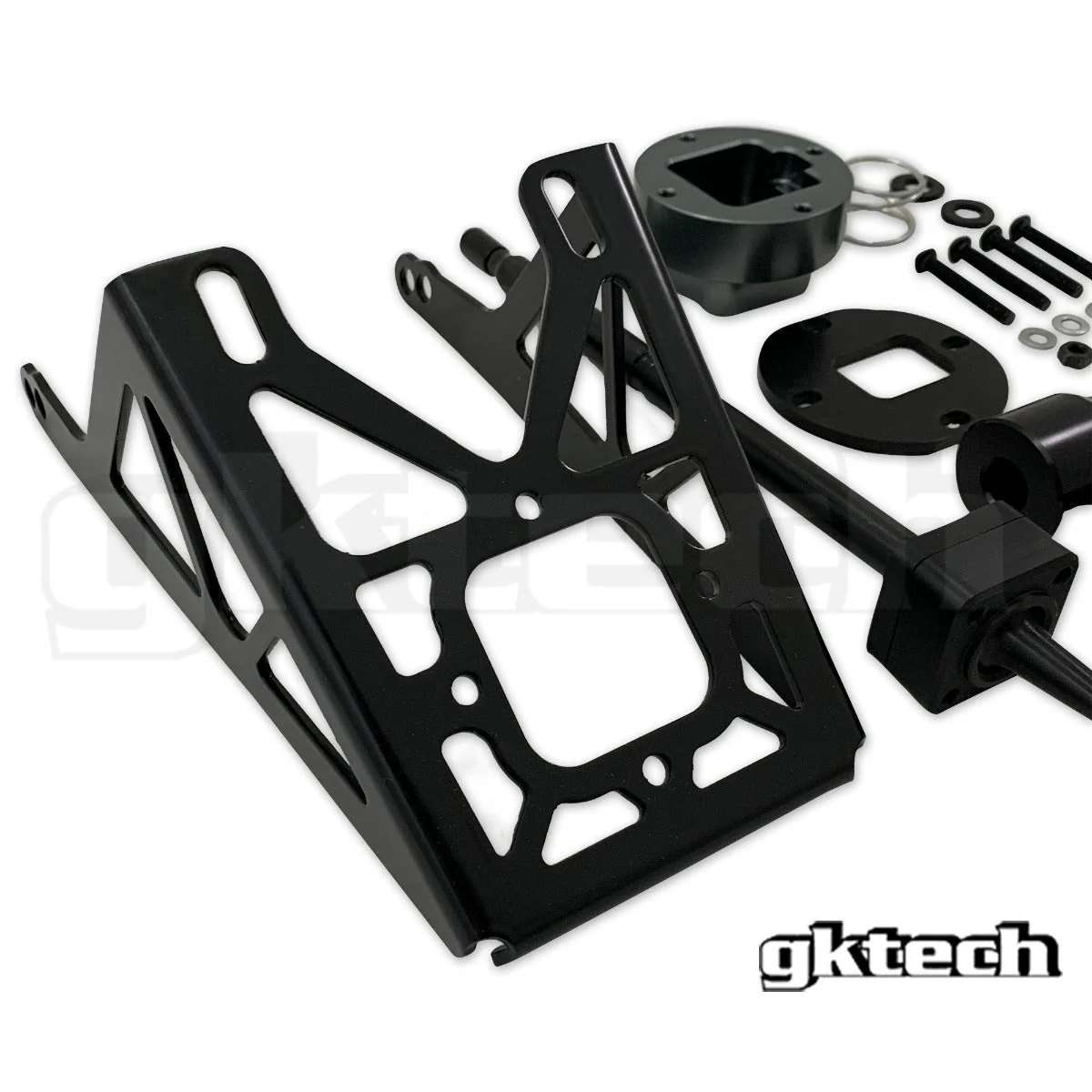

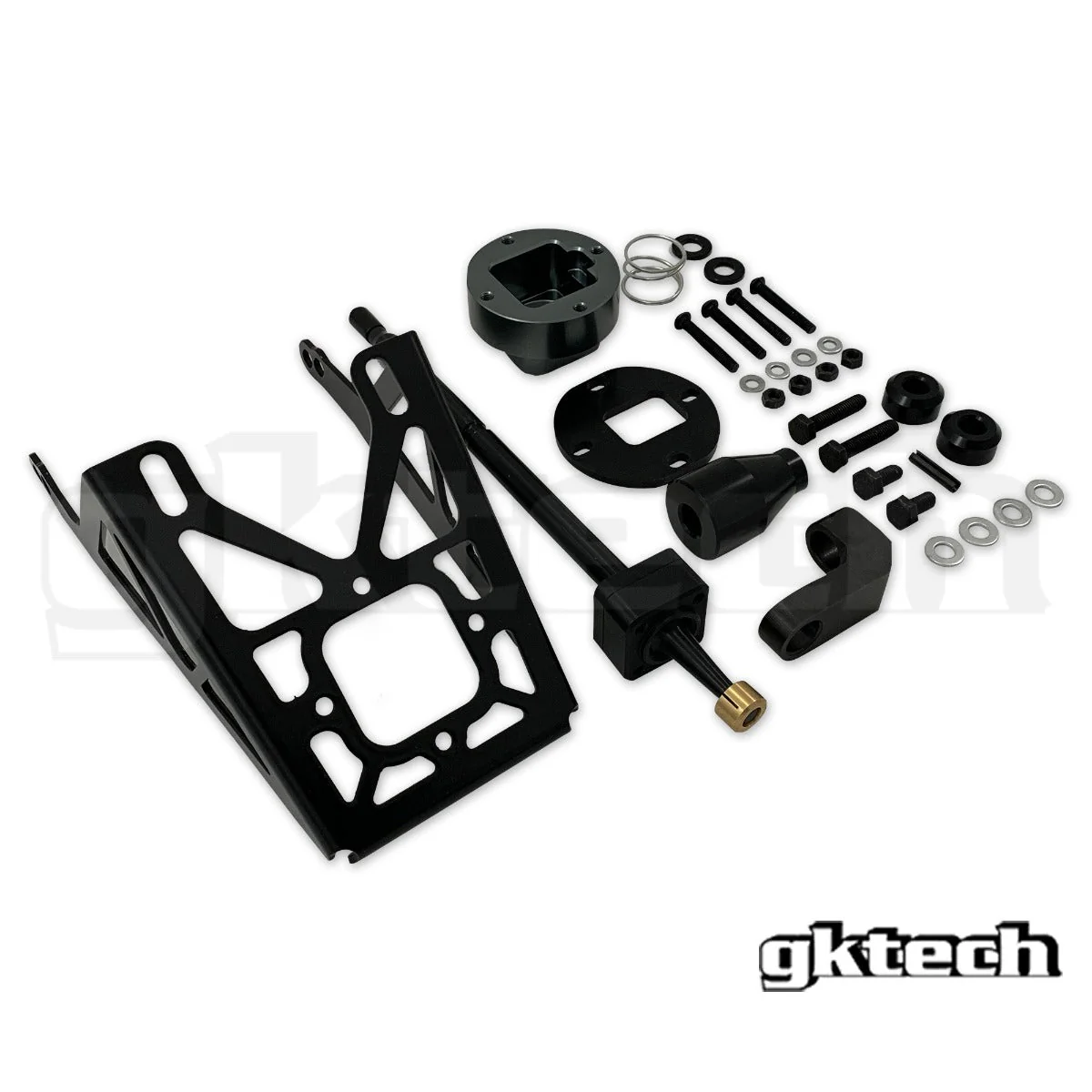

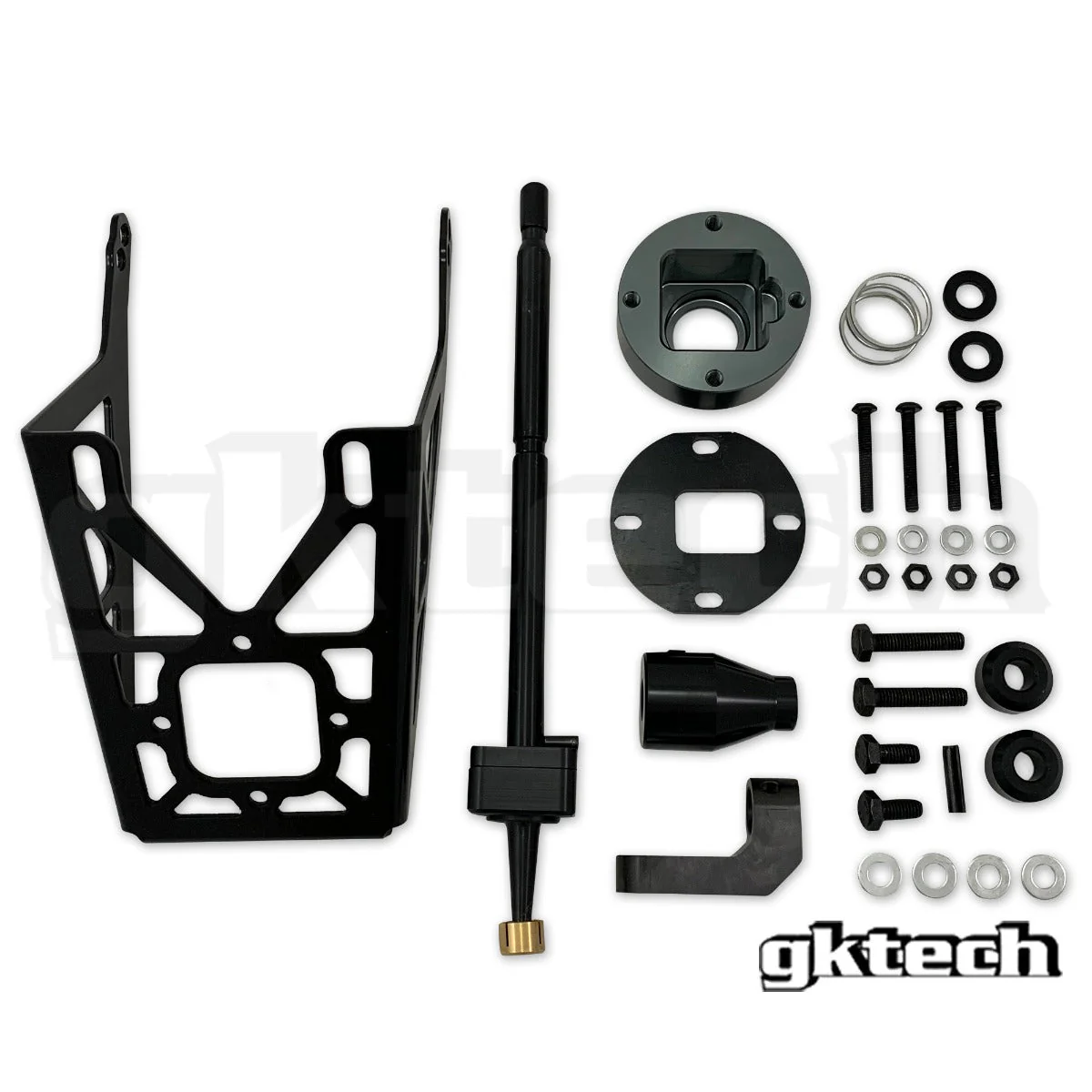

The V2 CD009 shifter relocation setup has been designed as a bolt on solution when fitting cd009, cd00a transmissions to S and R chassis Nissans (although may fit others) and not having the shifter sit back 6" too far. Our shifter setup sits just 85mm (3-11/32") from the rear of the bolt holes on the back of the transmission.

Designed from scratch with over 200 hours spent modelling, prototyping and testing we are happy with the final result. This design DOES feature reverse lockout.

- CAD designed
- No OEM parts required to fit this to the rear of a Z33/Z34 transmission
- Features reverse lockout
- Shifter sits just 85mm from the rear of the bolt holes on the back of the transmission
- Thread for shifter is M10x1.25 (same as S13/S14 SR20 Nissan and many others)

NOTE: Does require cutting of the rear selector shaft (very easy to do with a hack saw blade or cutting disk)
NOTE #2: Will not work with transmission yokes larger than the OEM Z33 yoke at 90mm in outside diameter
NOTE #3: Fitment is based on running an SR20, KA24, VQ35/37 or RB20/25/26. If you're running an engine that sits further back then the shifter will sit further back.

Check out this short video from one of our testers on Instagram: https://www.instagram.com/p/BFIfc6QHev3/
